A CAN bench you can run on your laptop

A BMS, a DC-DC converter and a VCU running Zephyr on an emulated CAN bus in Docker, and how to adapt it to your own nodes.

Michael Jaradah6 minute read

Part 1 of 2 in The CAN bench

Three emulated boards on one virtual CAN bus, with a CAN frame on the bus.
Contents6 sections

If you work on a product with firmware in it, you probably test it a few different ways: unit tests on your machine, a HIL rig, a bench in the lab with some boards wired together, and eventually the real thing. All of them take upkeep, and the bench usually gets the least. Somebody builds it for a specific push, it earns its keep for a while, and then the firmware moves on, a board gets borrowed for something else, and a year later the tests on it fail for reasons nobody has time to chase.

We wanted a small bench that anyone on a team could run: a small CAN network with real firmware on it, living in a git repo, that comes up on a laptop or a CI machine and goes away when you're done. So we built one. The code is open source, so take whatever fits your own setup. The nodes and the bus need nothing from us; the bench also starts a Zelos agent, which part two puts to work.

What's on the bus

Three nodes that a lot of battery-powered products have some version of:

  • a BMS that reports the pack and publishes how much current the rest of the system may draw,
  • a DC-DC converter that runs the 12 V rail off the pack and stays under the limit the BMS gives it,
  • a VCU that tells the BMS which mode the vehicle is in. It loops through standby, drive and charge every 15 s of firmware time.

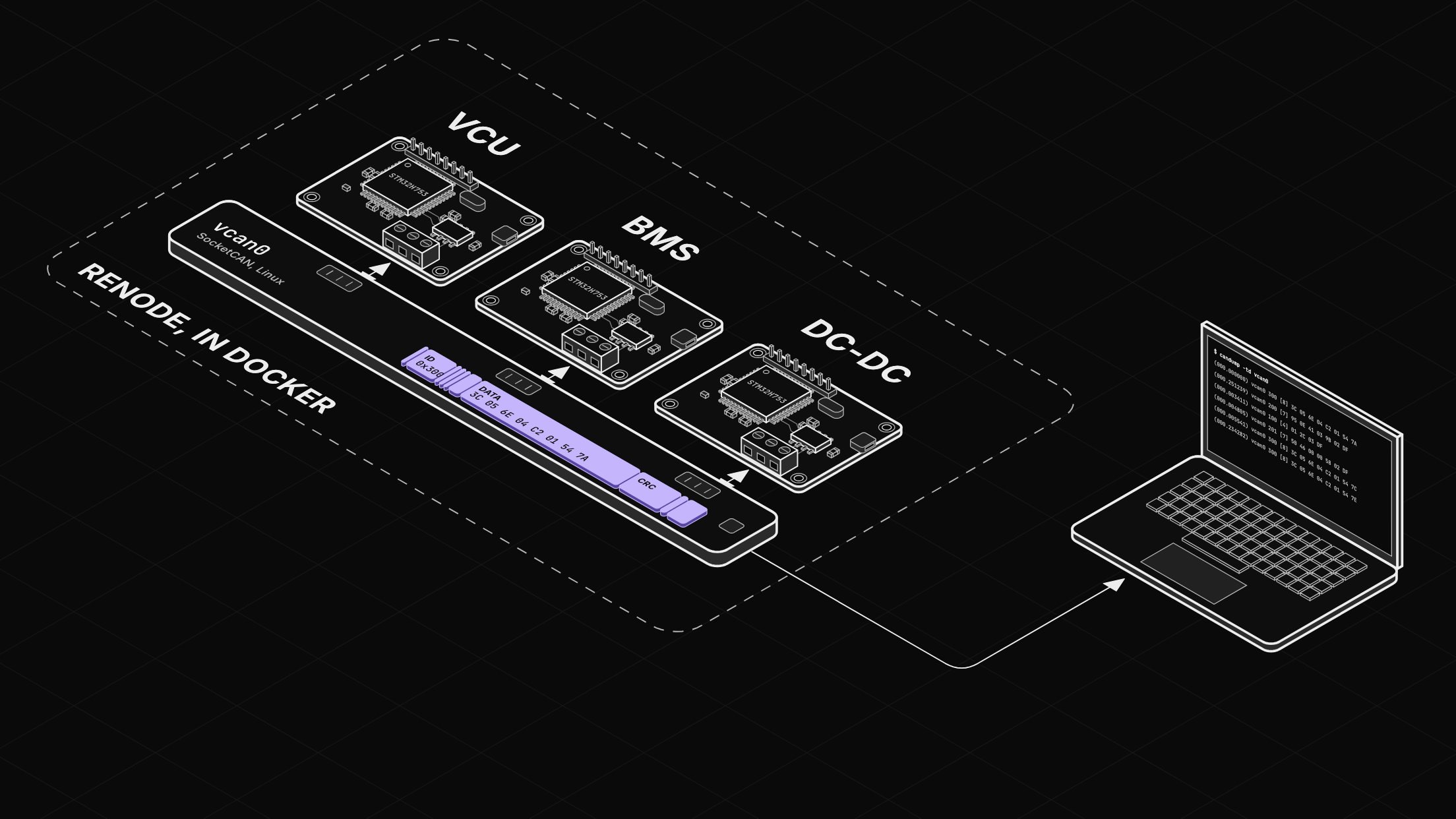

Three boards, each Zephyr on an emulated STM32H753, on vcan0, the virtual CAN bus, inside Renode in Docker. The VCU sets the mode, the BMS reports the pack and sets how much current the DC-DC may draw, and the DC-DC runs the 12 V rail under that limit. A frame with ID 0x300 rides the bus, and a laptop reads it from vcan0.
The bench. The bus is virtual, so there is no termination.

Each node is an ordinary Zephyr application running on an emulated STM32H753 in Renode. Renode connects the three over a virtual CAN hub and bridges that hub onto a Linux SocketCAN interface, vcan0. Anything that can open a CAN socket can read the bus, including candump, and all of it runs in Docker containers.

They exchange five messages:

IDMessageFromPeriodCarries
0x100VCU_CommandVCU100 msMode, torque request, heartbeat
0x200BMS_StatusBMS100 msPack voltage and current, state of charge, contactor
0x201BMS_LimitsBMS100 msDischarge, charge and auxiliary current limits
0x202BMS_CellVoltagesBMS500 msFour cell voltages
0x300DCDC_StatusDC-DC50 msRail voltage and current, pack draw, temperature

All of it is defined in one DBC file. The firmware's pack and unpack code is generated from that file with cantools, so nobody writes bit positions by hand, and anything that decodes the bus reads the same file.

Running it

You need Linux with Docker. On a Mac, run it inside a Linux VM; the README has the steps. Everything else, the Zephyr toolchain included, runs in containers:

git clone --branch can-bench-v1 https://github.com/zeloscloud/zelos-examples
cd zelos-examples/can-bench
just build
just up
just bus

The repo uses just as shorthand for a few Docker commands, and you can run those directly if you'd rather not install it. just build compiles the four firmware images in a container. The first run downloads the toolchain and the Zephyr workspace, about 3.4 GB, and takes a few minutes; just build dcdc rebuilds one node.

just up checks that the firmware is in build/ and runs docker compose up -d --wait. That starts three containers: one owns the virtual CAN interface, one runs Renode with the three nodes, and one runs the Zelos agent we use in part two, which you can ignore for now. just bus is docker compose exec renode candump -td vcan0:

 (000.000000)  vcan0  300   [8]  3C 05 6E 04 C2 01 51 1C
 (000.006951)  vcan0  200   [7]  96 0E 41 03 9B 02 47
 (000.002506)  vcan0  100   [4]  01 B3 03 47
 (000.003861)  vcan0  201   [7]  50 46 00 00 58 02 47
 (000.036333)  vcan0  300   [8]  3C 05 6E 04 C2 01 51 1E
 (000.051012)  vcan0  300   [8]  3C 05 6E 04 C2 01 51 20

The DC-DC shows up twice as often as the others because it runs at 50 ms.

A few things that tripped us up

A clock at a fifth of its speed. Renode's model of this part clocks the SysTick at 96 MHz, in platforms/cpus/stm32h743.repl. Zephyr's board file runs the core at 480 MHz and counts SysTick ticks at that rate, so out of the box every millisecond of firmware time took five milliseconds of Renode's. Nothing reports it: the three nodes agree with each other, every frame is right, and only the gaps between candump timestamps give it away. sysbus.nvic Frequency 480000000 after the platform loads matches the two, and the firmware's clock then tracks Renode's exactly. Worth checking for any part you swap in.

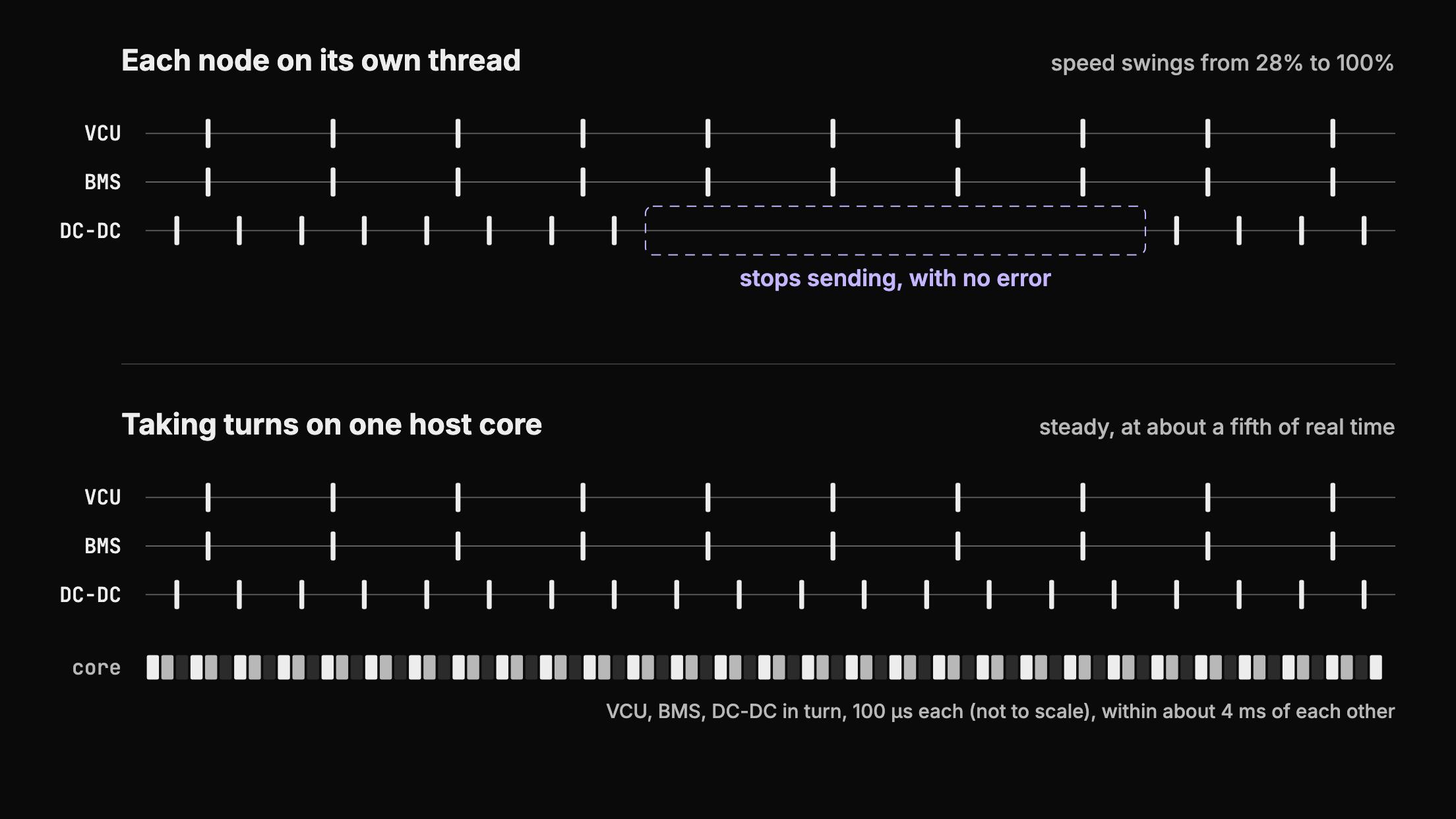

Keeping real time. Renode advances each machine by a quantum of virtual time, 100 µs by default, and a frame sent in one quantum reaches the other machines at the next. With the clock matched, that quantum costs more host time than three 480 MHz cores leave: on GitHub's 4-vCPU runners the bench ran at about three quarters of real time. At 1 ms, a fiftieth of the fastest period on the bus, it keeps real time. Over a ten minute run every message arrived at its declared period, and no gap between a node's frames was more than 19 ms off. The bench also runs the machines in turn on one host thread, which is Renode's deterministic mode. A host that cannot keep up slows the whole bench together: the ratios between messages stay exact and only the host's timestamps stretch, so measure rates from the firmware's clock rather than from candump's.

Renode exiting the moment it starts. In a container, --console reads commands from stdin, hits end-of-file straight away, and shuts down cleanly with an empty log. That looks exactly like firmware dying on boot. --disable-gui with the monitor on a TCP port fixes it.

One bridge per bus. Bridge the hub onto vcan0 twice and every frame loops back in until the bus is full of its own echo.

Byte-swapped IDs. On Renode 1.15.1, frames leaving through the SocketCAN bridge had their IDs byte-reversed, so a frame sent as 0x001 showed up in candump as 0x000 (renode#641). It's fixed in 1.16.0, and we pin 1.16.1.

Breaking it on purpose

The DC-DC ships in two builds that differ by one Kconfig option. The converter limits how fast its current can rise, which is sensible, because inrush is hard on contactors and input filters. The defective build applies that same limit when the current has to drop.

So when the VCU switches to charge and the BMS cuts the converter's allowance from 6 A to 2 A, the good build drops right away. The defective one ramps down from 4.5 A at 10 A/s and spends 250 ms of firmware time drawing more than it's allowed. Nothing logs an error, and every frame on the bus is valid and in range. It only shows when you plot the allowance against the draw.

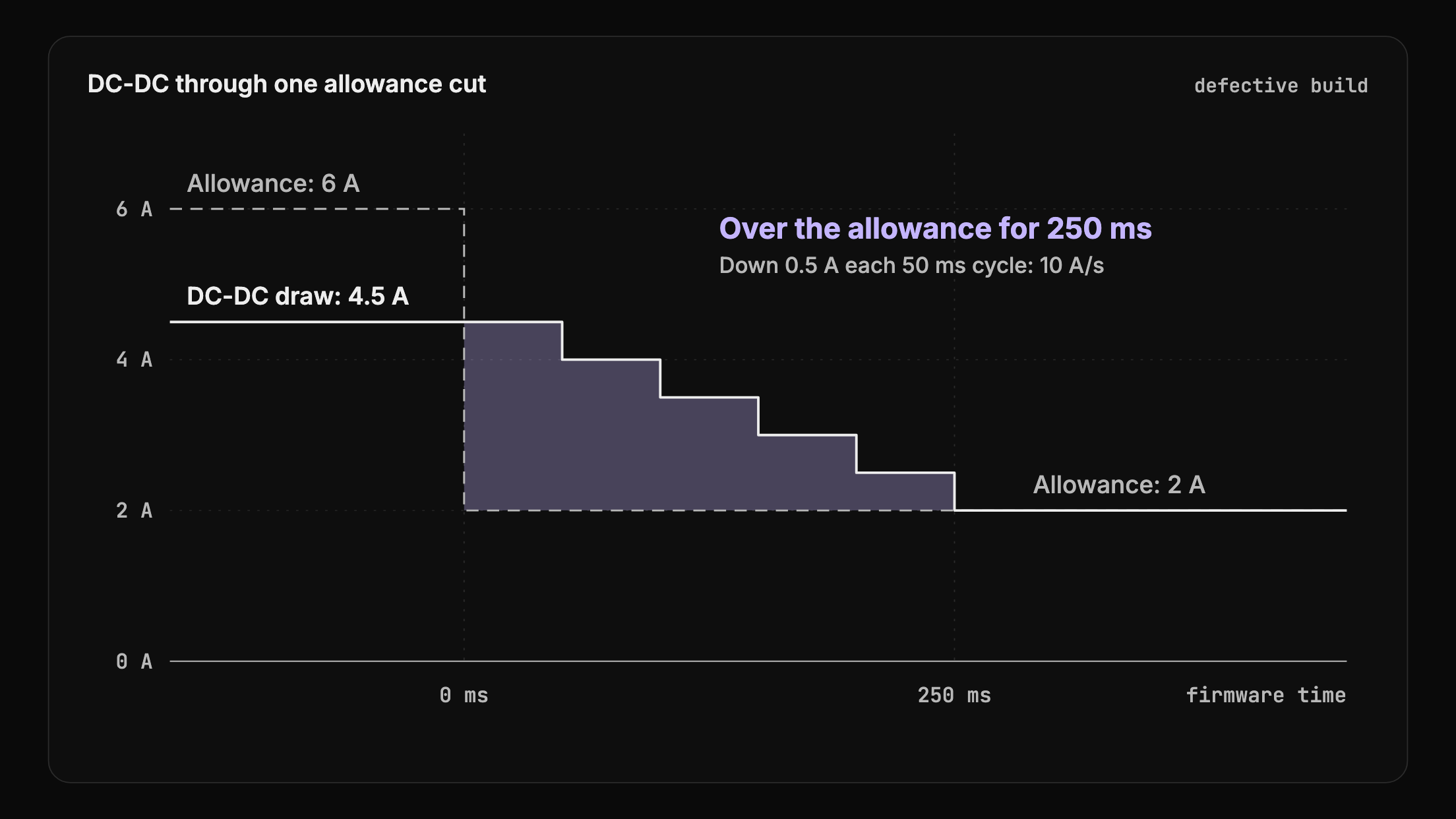

A plot in firmware time: the allowance from the BMS drops from 6 A to 2 A at 0 ms. The DC-DC draw, at 4.5 A, steps down 0.5 A each 50 ms cycle, 10 A/s, and stays over the new allowance until 250 ms. The overdraw is shaded.
The defective build through one cut, in firmware time.

just flash defect swaps it in by restarting the containers with the other DC-DC build loaded.

Where the emulation falls short

Renode's CAN model has no acknowledgement, no arbitration and no error frames, so every frame gets through. That means:

  • a bitrate mismatch between nodes works fine here and fails on real hardware,
  • bus-off and error counters never happen,
  • ordering under bus load isn't what real hardware would do,
  • nothing electrical exists: no termination, no noise, no ground offset.

Swapping in your own board

Renode loads the board from a script that bench/renode-run.sh writes for every node, and the firmware build reads it from BOARD in the repository's top-level justfile:

machine LoadPlatformDescription @platforms/boards/nucleo_h753zi.repl
sysbus.nvic Frequency 480000000

If Renode models your part and its CAN controller, you can change those, drop in your own firmware and your own DBC, and most of this still applies. If your part names its CAN controller differently, the connector Connect line in the same script changes too. The Frequency line is the SysTick clock that tripped us up above; check it against what your firmware's board file assumes. Check Renode's platforms folder first. We haven't tried this on anything but this one STM32.

A real adapter is a different matter. The bench's containers share their own network namespace, so a USB adapter's can0 on the host isn't visible inside them. Part two covers pointing an agent at real hardware.

Everything is in zelos-examples/can-bench, at the can-bench-v1 tag, which is the code exactly as these posts describe it. The repo keeps changing on main. If it misbehaves on your machine, or you get it running on your own part, open an issue. We'd like to hear about it.

In part two we put Zelos on this bench.
